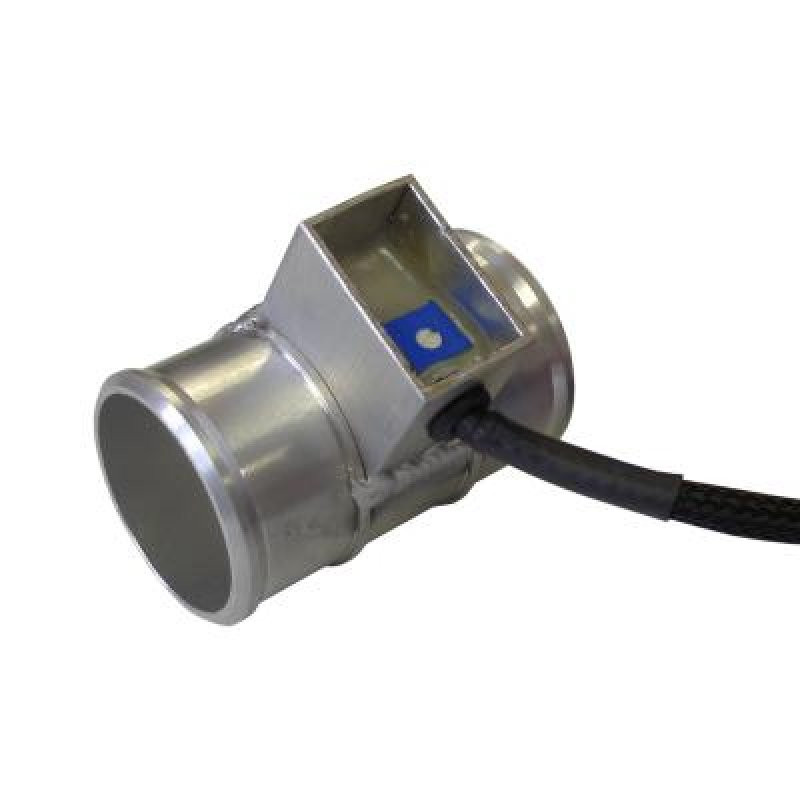

28mm hose size. These universal thermostats provide an easy retrofit solution for controlling an electric cooling fan. Electronic Fan Controller for fitment into a coolant hose.

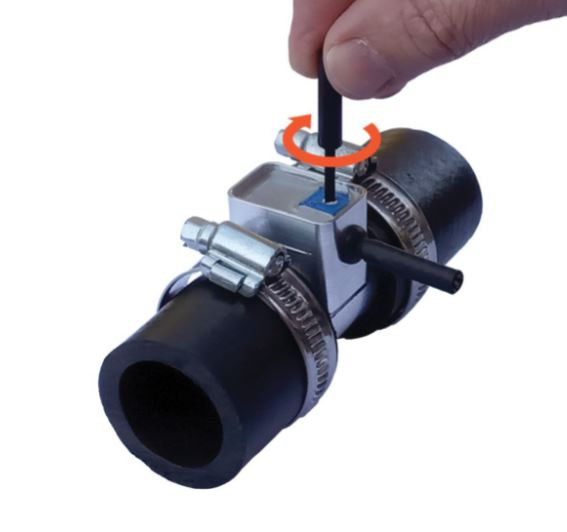

Adjustable so the fan can be switched on anywhere between 70 and 120°C.

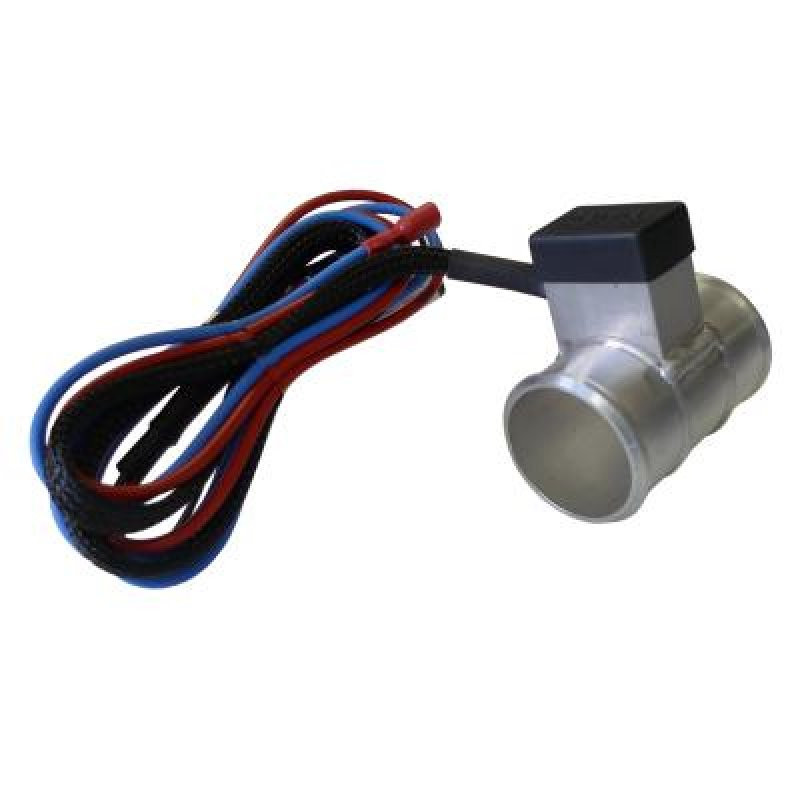

Negative Earth Housing. Fits directly into a radiator top or bottom hose for direct water contact. Technical Information: Supply Voltage: 12v Space in hose approx.: 28mm Overall length approx: 65mm Material: Aluminium Relay Rating: 30 AMPS Wire Length: 700mm Supplied with 2 x Hose Clamps, Relay, Cap, 3 x Cable Ties, Fitting Instructions

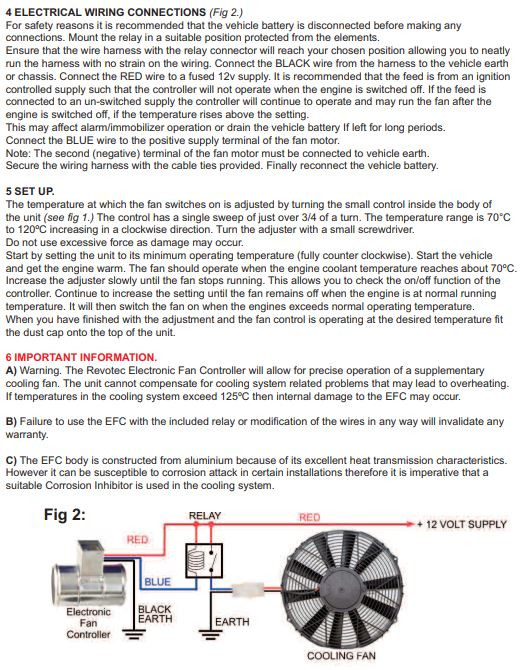

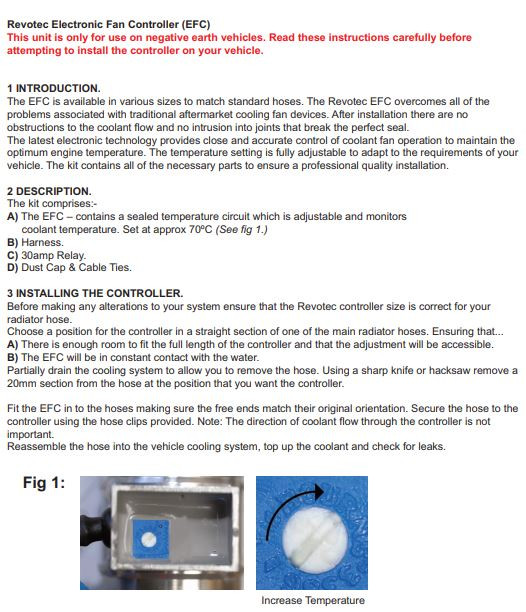

Fitting Instructions for the Revotec inline electronic thermostat radiator fan controller
