Glass bowl fuel filter - In line, 1/2" UNF female or solder nipples for 1/4" or 5/16" OD pipe

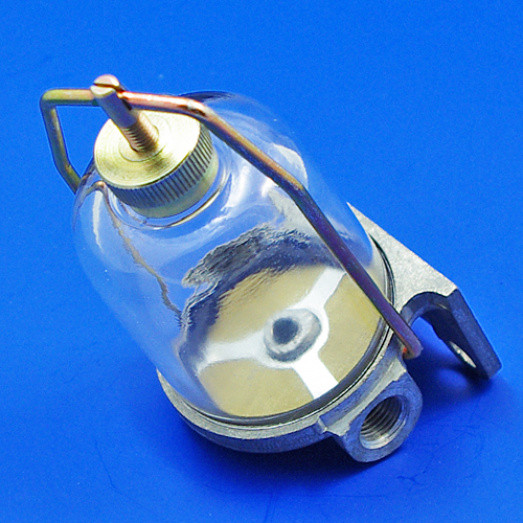

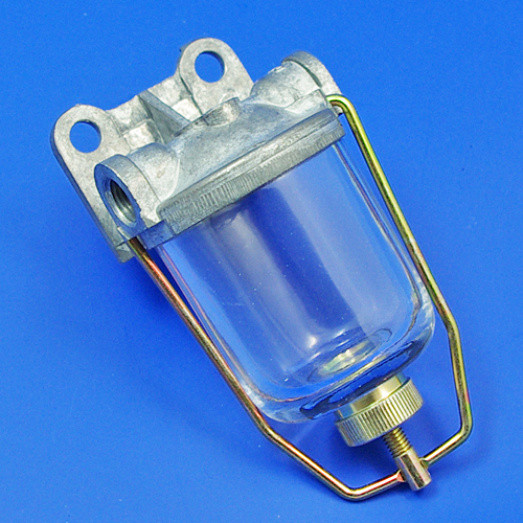

Glass bowl in line fuel filter, with mounting bracket (hole centres approx 40mm centres). Detatchable glass bowl held by U bracket.

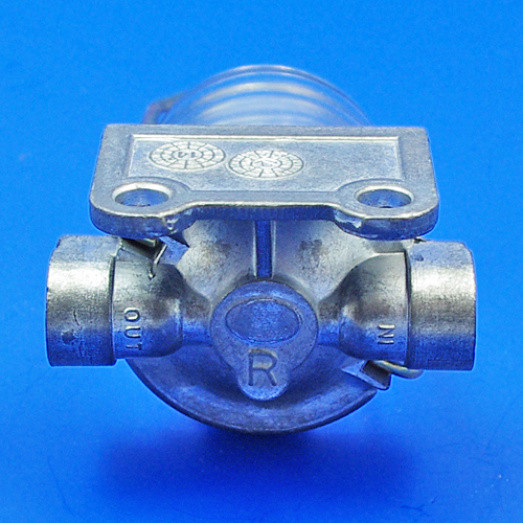

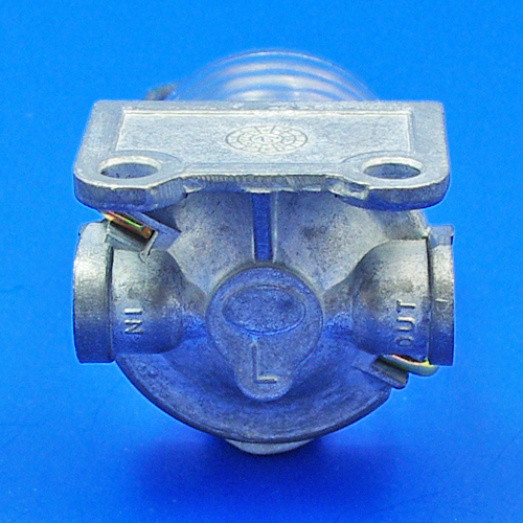

This filter is offered with right or left inlet port (as viewed with the mounting bracket away at back). Fitting options:
- CA1026A & B - 1/2" UNF threaded ports (overall dimensions height 120mm, width 75mm, depth 58mm). No fittings supplied - double ended union with nuts and nipples, or male union nuts 1/4" or 5/16" can be supplied at extra cost.

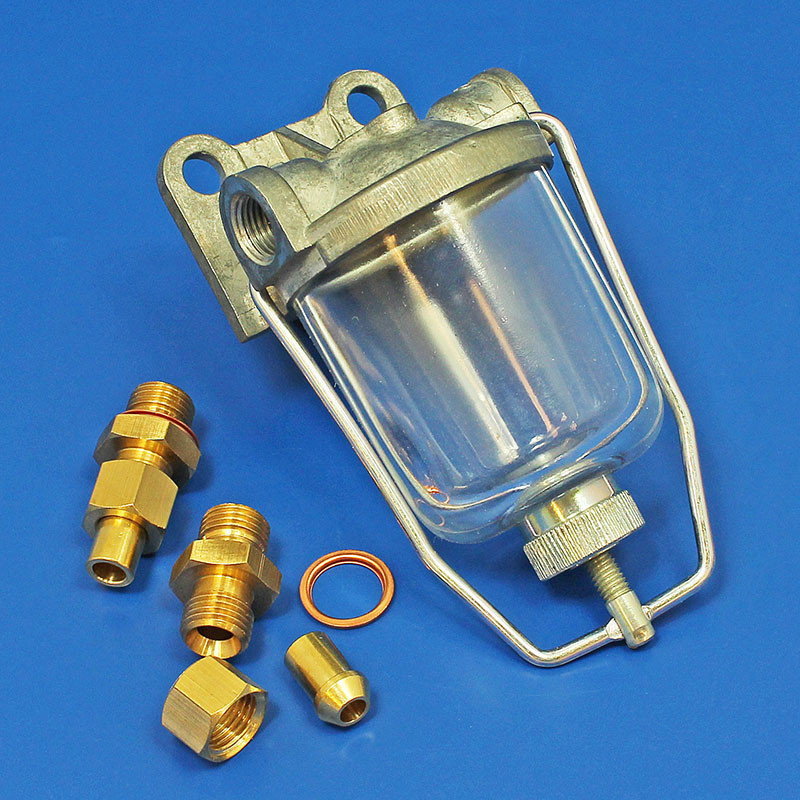

- CA1026A-BSP and CA1026B-BSP - Ports tapped out to 1/4" BSP, supplied with double ended unions, nuts and nipples to suit either 1/4" or 5/16" pipe - please selection option from dropdown box under the individual parts.
