Base plate to enable mounting of TS82 type indicator switches to Lucas S58 column mounted stalk

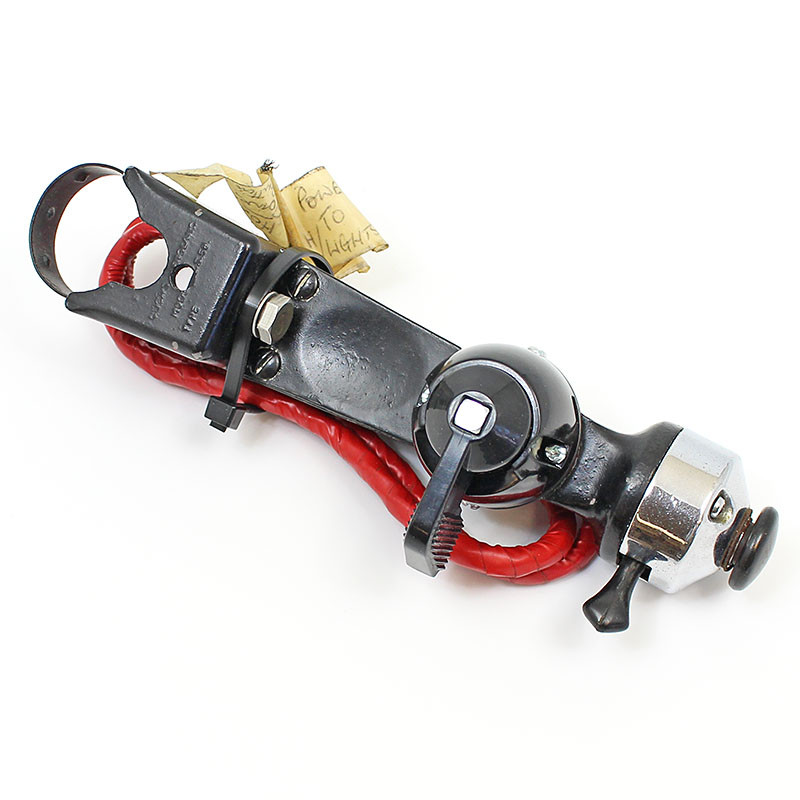

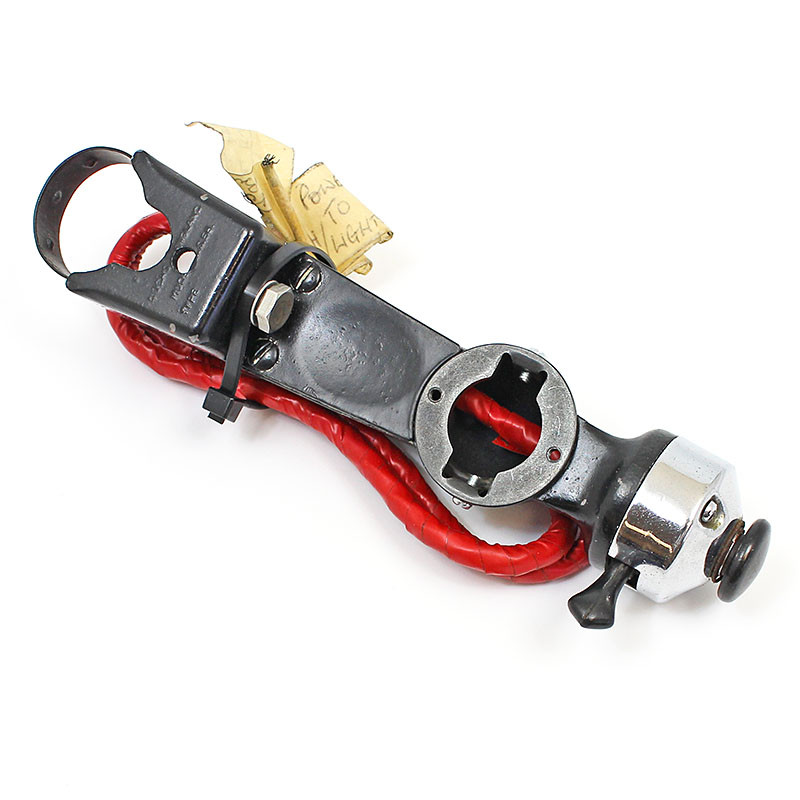

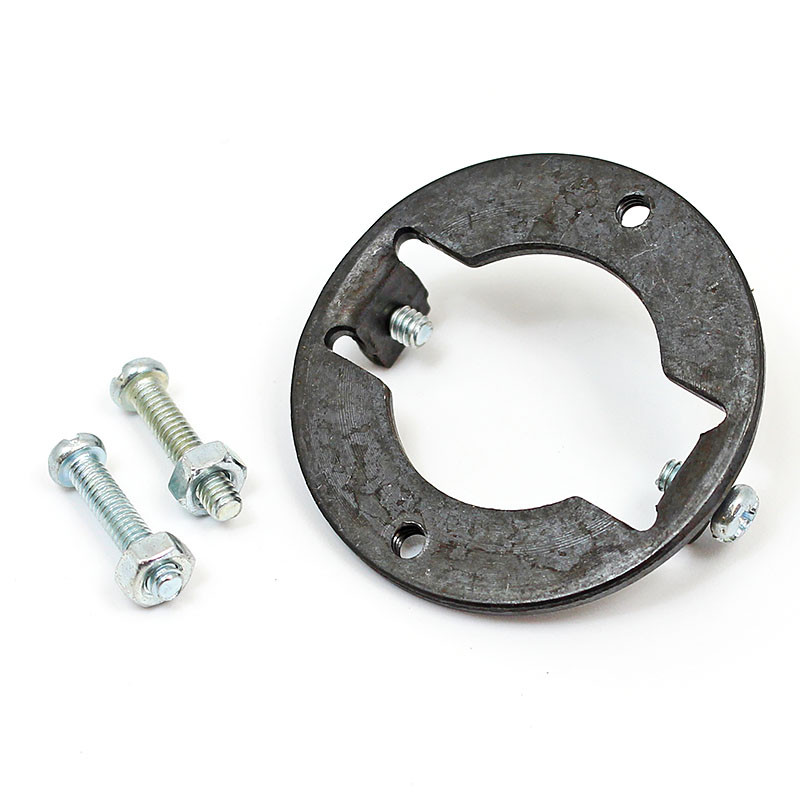

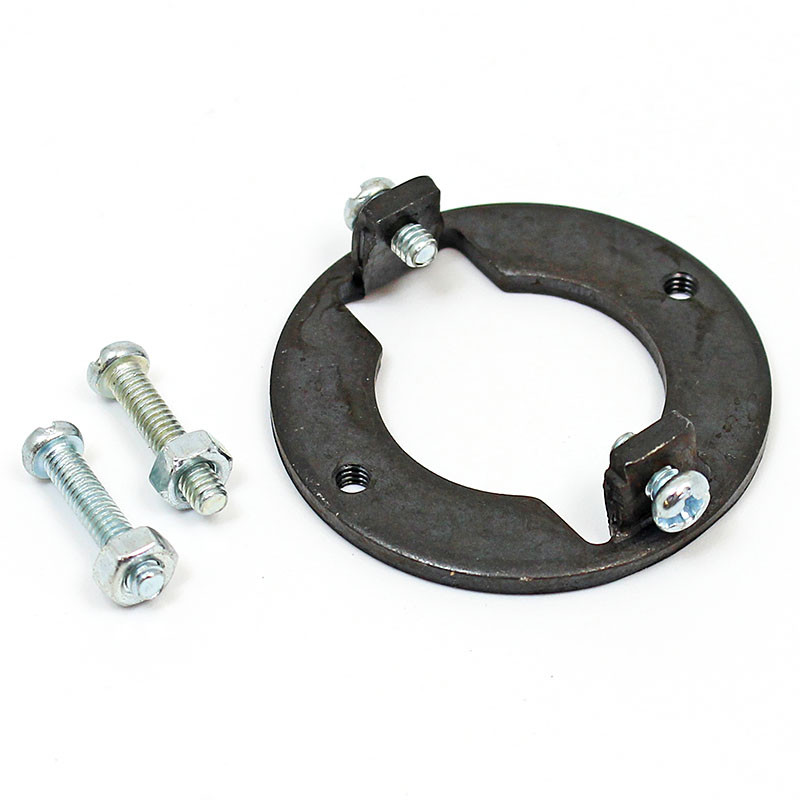

Black coated steel base plate 40mm in diameter with 23mm internal diameter. Two vertical locating tabs with threaded holes for locating the mounting plate into the body of the Lucas S58 column stalk. There are also two threaded mounting holes in the face of the plate for attaching the TS82 switch. Supplied with two 6mm long pan head screws for attaching the plate locating tabs to the body of the ST58 stalk and two 16mm screws and nuts for attaching the switch to the plate. Base plate and fixings supplied ONLY - photos of Lucas S58 column stalk included for reference (photos of plate and plate plus switch mounted on column). For an alternative mounting plate for flush/dash mounting, please see part number TS82-DASH.
