Posi-Flo 26 gallons/hour compact pump - 12V negative Earth
An outstanding, lightweight universal electronic fuel pump with state-of-the-art design that can be used in all carburettor-equipped vehicles and also as a diesel lift pump. Compatible with most fuels.
12v negative earth, draw 2 amps, Flow rate 32 (US) gallons per hour (approximately 26 UK gallons per hour) at 4.0 to 7.0 p.s.i.
Two bolt, two wire installation. Small size 85mm x 78mm x 60mm. Inlet and outlet are threaded 1/8" NPTF.

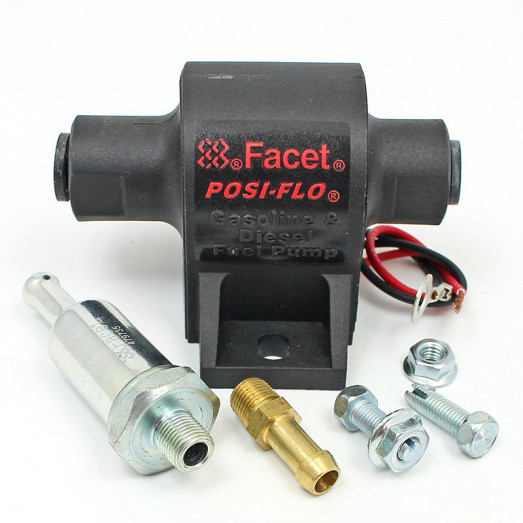

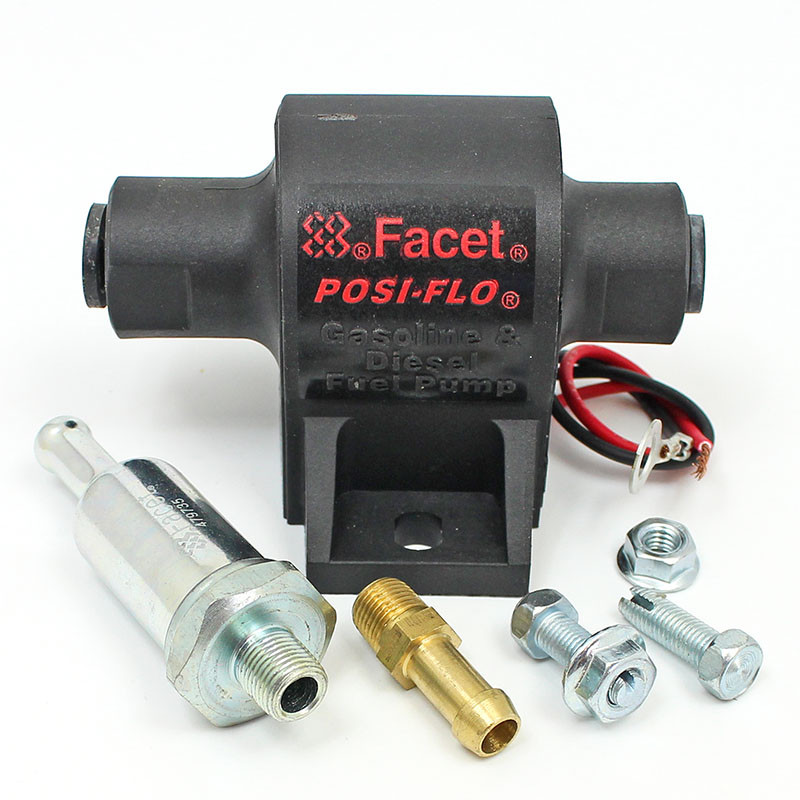

All the parts necessary to make a complete installation including inlet filter. Outlet connection is for 5/16 ID flexible hose. It is rated for 6000 hours of performance.
The Facet Posi-Flo fuel pump's self-priming capabilities provide up to 12 inches of fuel lift and no extended cranking is necessary to restart the engine if conditions require.
