Coils - Early Lucas type 12 volt Coil with Screw In Lead

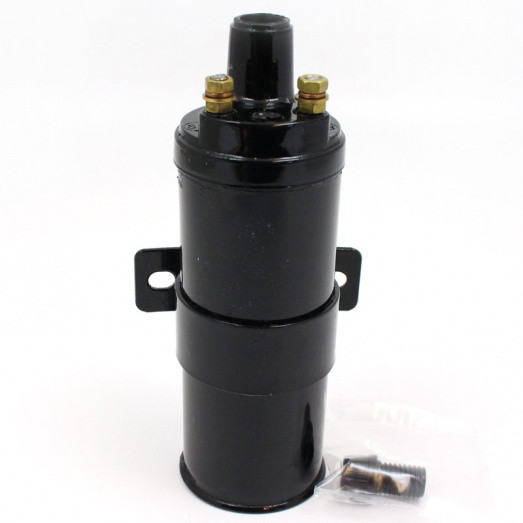

Early Lucas type 12 volt Coil with Screw In Lead

Reproduction of the original Lucas coil fitted between the late 1930's and the mid 1950's. With screw in/acorn nut lead connection. Terminal CB is positive and SW is negative. Primary coil resistance is 3.6 ohms and secondary coil resistance 15.5 k/ohms. It is imperative that the +ve and -ve connections are made correctly. This coil is labelled for use on +ve earth vehicles, but if using on a -ve earth vehicle, connect the 12v supply to the CB terminal and the distributor points to the SW terminal. Size 180mm high, 55 mm diameter. Mounting holes 63 mm apart.

@ £82.93/  Each  (exc. VAT)  (inc. VAT @ 20%)
