Change Over Taps - Three way changeover tap - 1/4" BSP male threads, extended spindle

Three way changeover tap - 1/4" BSP male threads, extended spindle

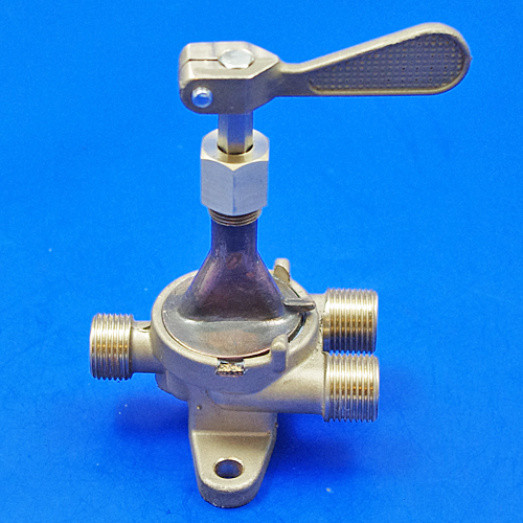

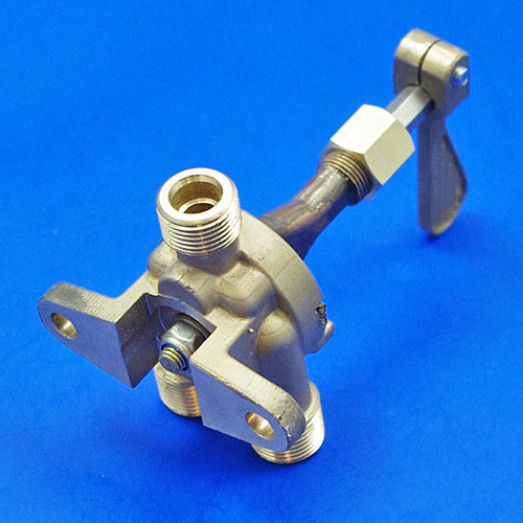

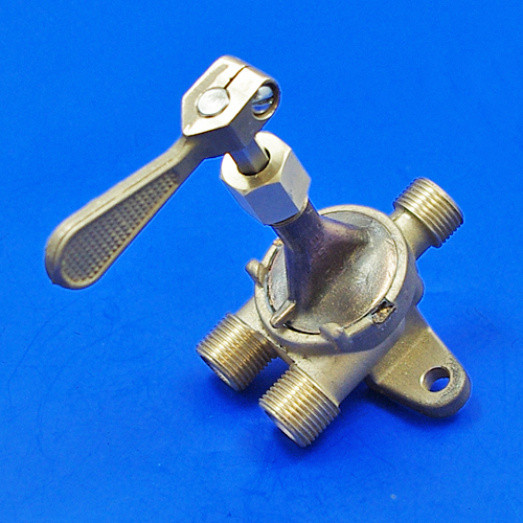

ENOTS pattern three way tap with cork plate and 1/4" BSP threads, for 1/4'' or 5/16" OD copper tube fittings, to be ordered separately. The hexagonal bar that the lever is attached to can be modified if required, so the lever can be fixed to the dash board. Base mounting holes on tap body with centres 53mm apart. Overall dimensions 68mm long (including threads) and 40mm wide. Mounting bracket is 68mm wide with 53mm hole centres. Control lever pillar 70mm tall (including lever), lever tongue 50mm long. Three position - Centre for off, then left or right to open either feed. Base, tap head and thump lever are lost wax cast in bronze and then machined.

@ £173.71/  each  (exc. VAT)  (inc. VAT @ 20%)
