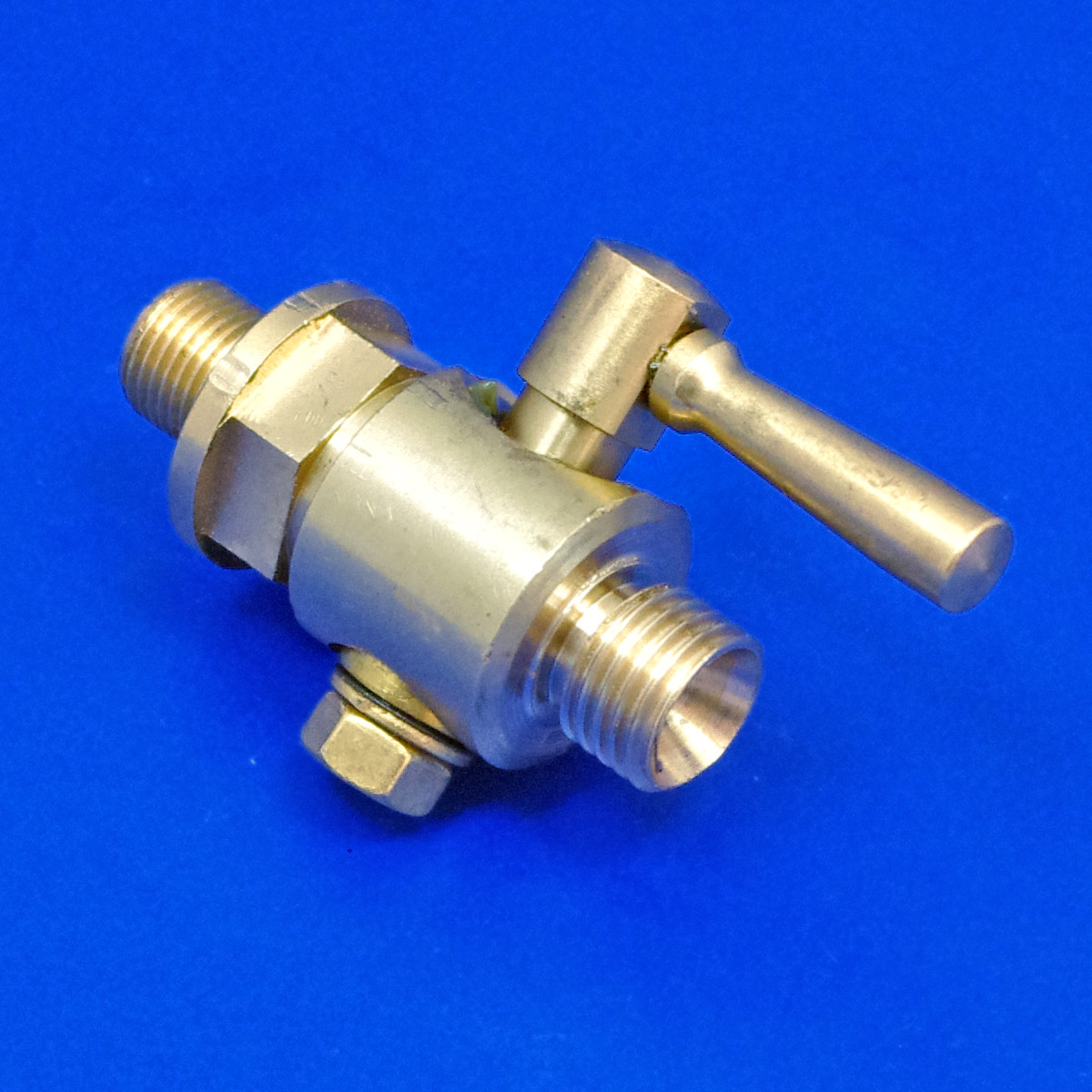

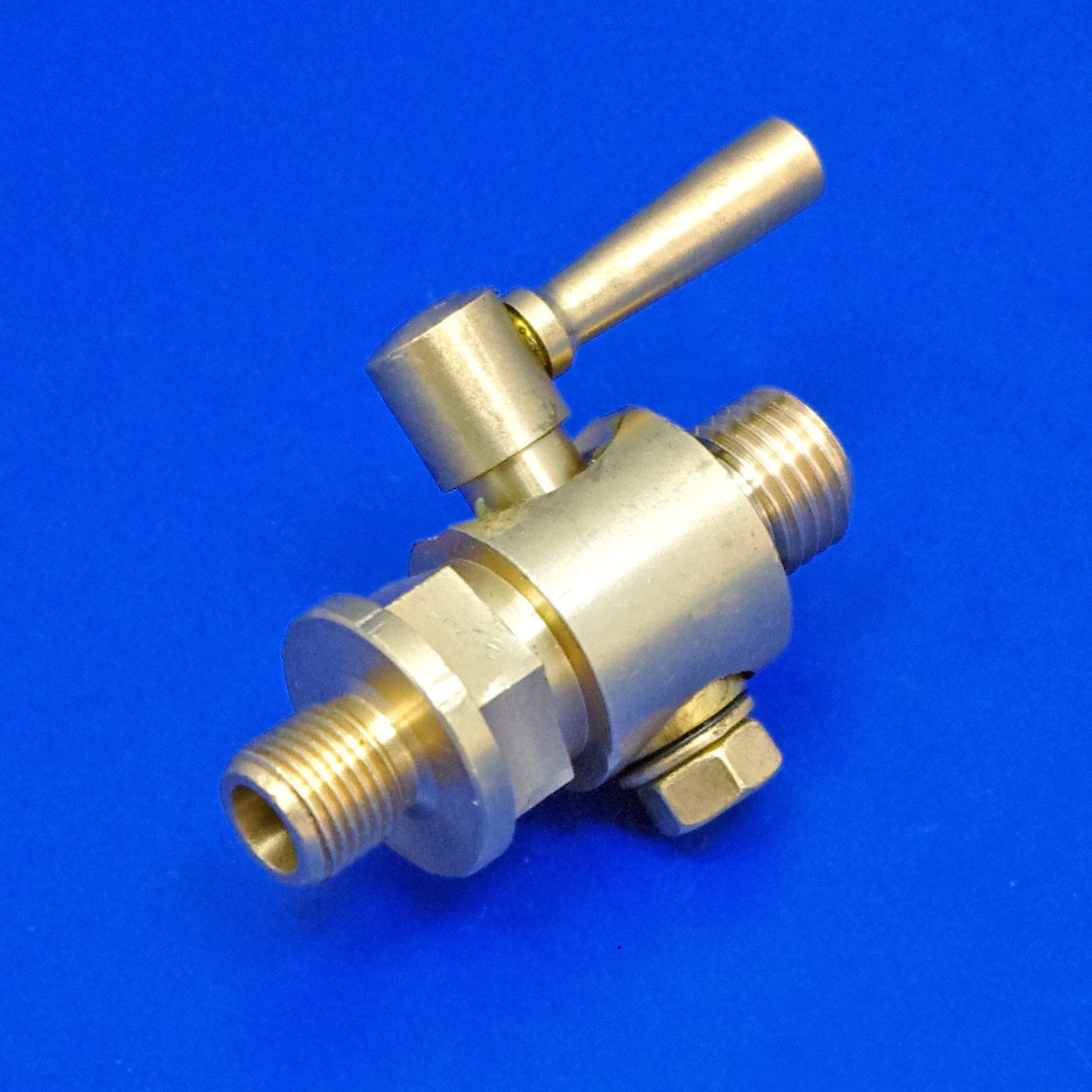

Fuel & Oil Shut Off Taps - Straight in line tap - 1/8" BSP thread into tank, 7/16" x 19TPI threaded outlet

Straight in line tap - 1/8" BSP thread into tank, 7/16" x 19TPI threaded outlet

Straight in line tap with 1/8" BSP male thread (under sealing flange) into tank and a 7/16" x 19TPI outlet thread, with a 60 degree seat for solder nut and nipple type fittings for 3/16" or 1/4" OD pipe only. Overall dimensions 45mm long (including threads) and 19mm diameter. This tap is supplied bare, please order fittings separately as required. A solder type nut and nipples can only be fitted to the 7/16" end. The 1/8" BSP threaded end under the hexagon has a seating flange, so can be screwed into a tank, with a folder copper sealing washer.

@ £30.41/  Each  (exc. VAT)  (inc. VAT @ 20%)
