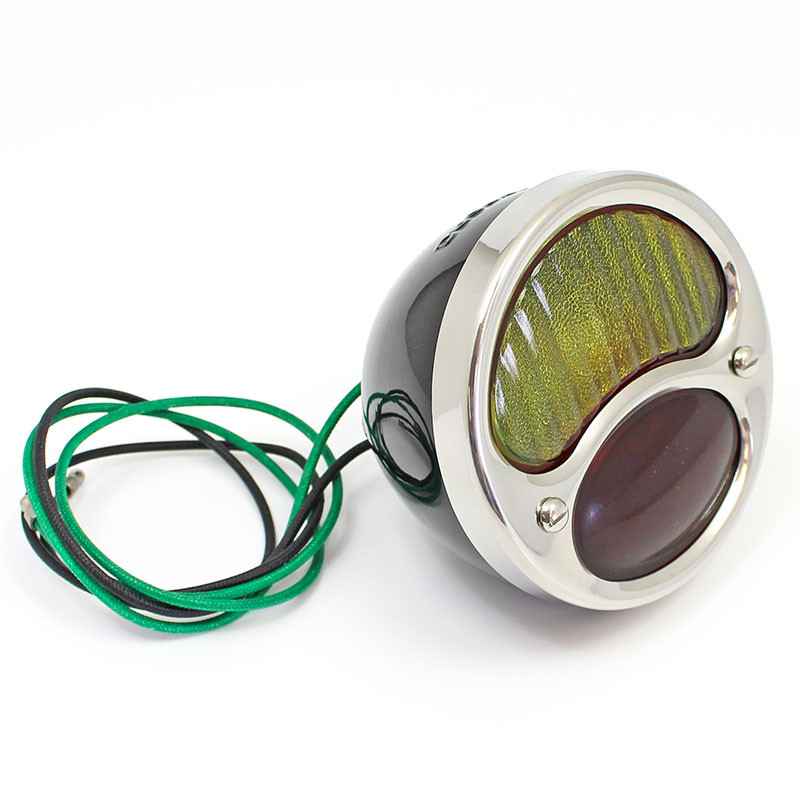

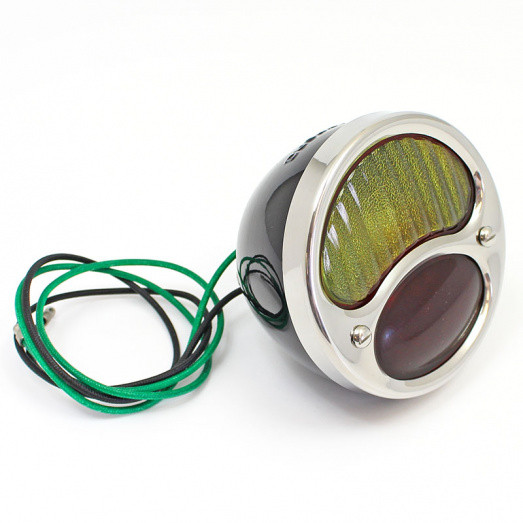

'Duolamp' rear lamp - Black body, polished stainless rim, red/amber main lens, NO side lens

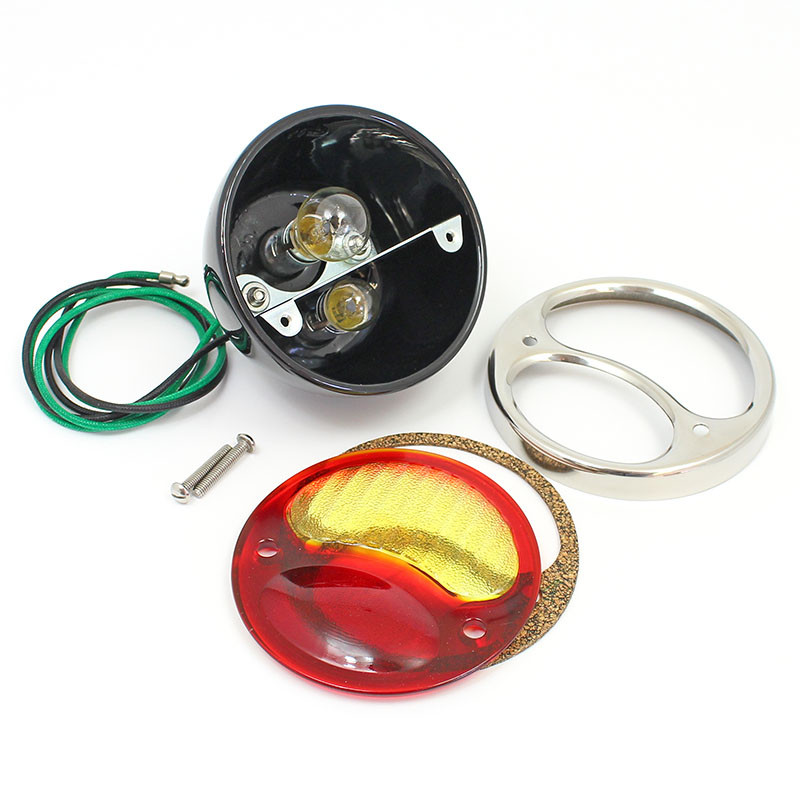

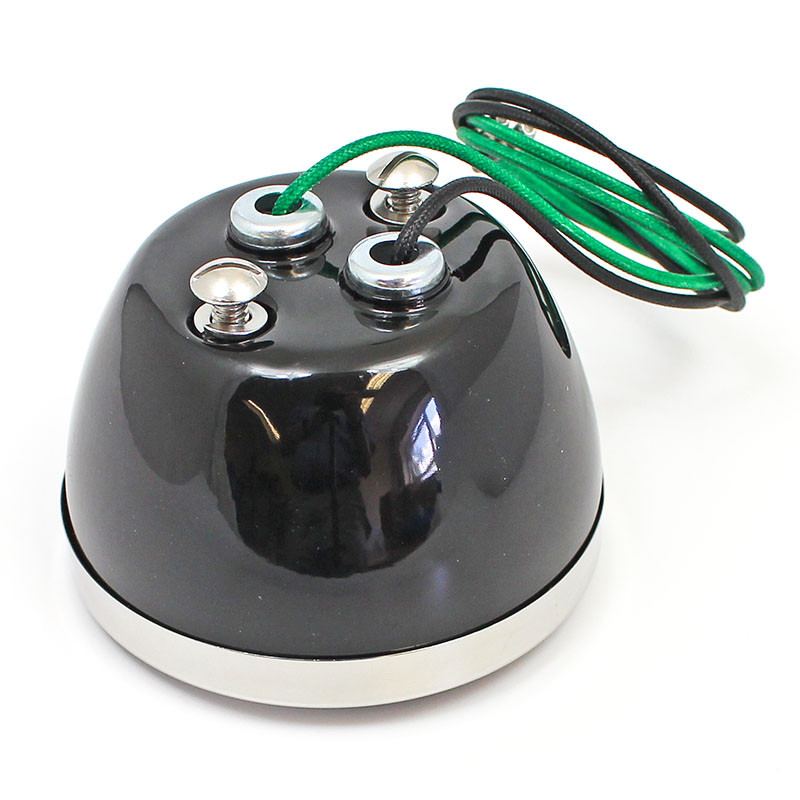

Gloss black powder coated round lamp housing with highly polished stainless steel rim. Excellent quality all red and amber split glass lens. 12V bulbs included as standard. Vintage style cloth braided green and black nylon coated wires. Green wire is stop, black wire is tail, metal housing is earth. 97mm diameter x 51mm deep. Two BA15S single contact bulbholders fitted through back, mounting screw hole centres 45mm. Uses BA15S bulbs, B317 (6v) indicator B205 (6v) side light or B382 (12v) indicator B207 side light.
These lamps can be upgraded with part number 211-CONV which converts the bottom bulb holder to a double contact BAY15D fitting - allowing use of a twin filament bulb behind the lower red section of the main lens, providing stop, tail and number plate light functions, leaving the upper amber section for indicator/turn signal function for red/amber lensed lamps. For red/red lensed lamps, either the tail or stop function can be doubled up with the extra filament.
