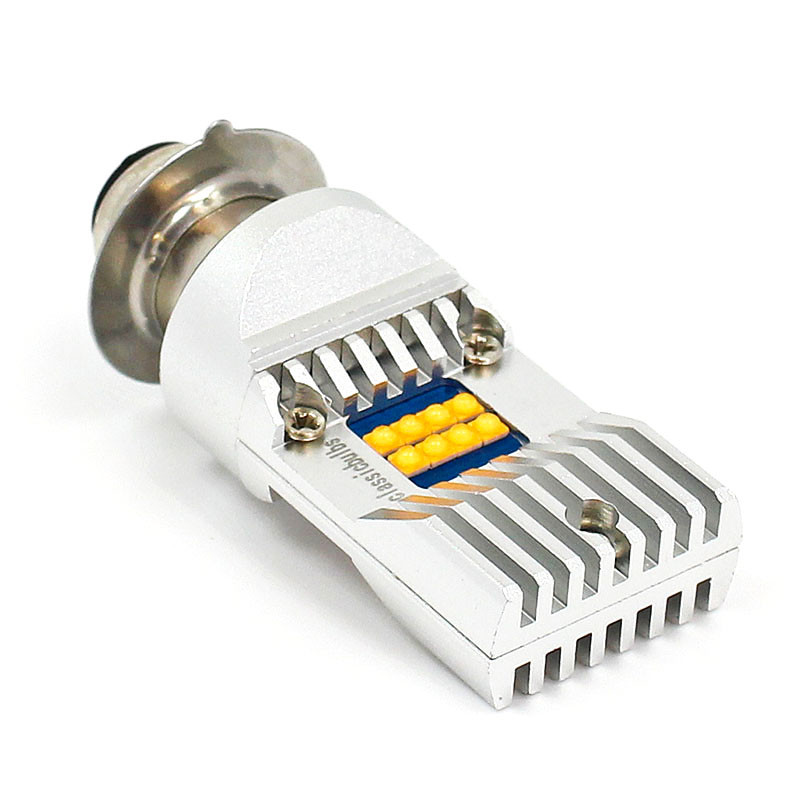

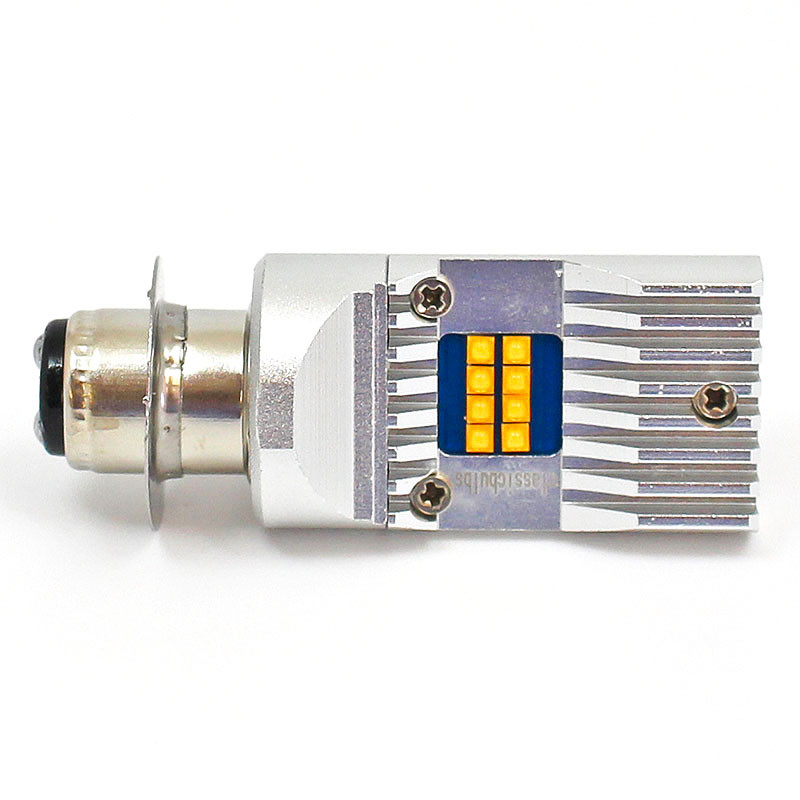

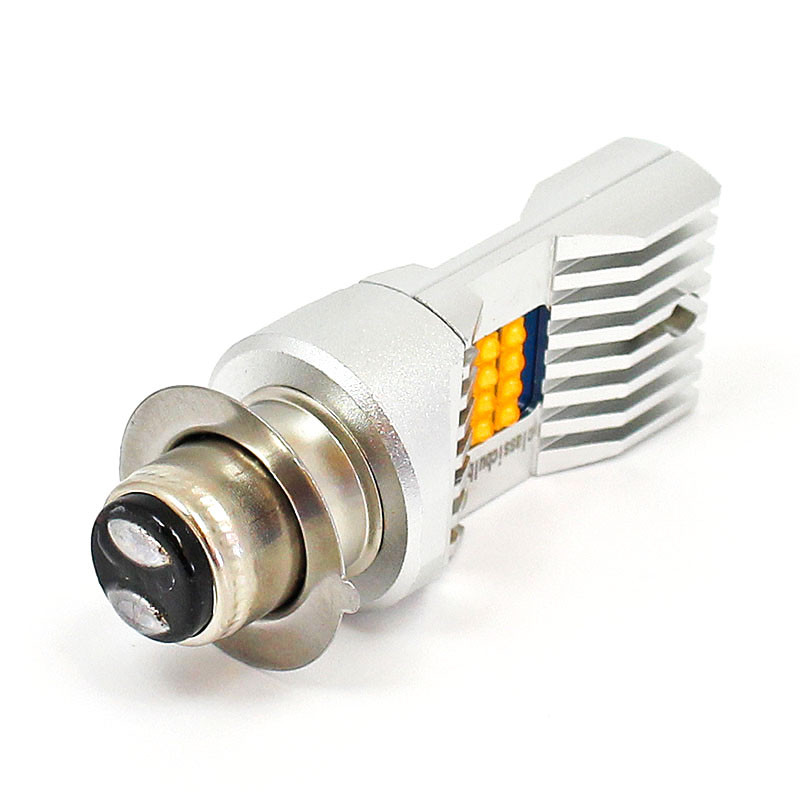

High quality 16 x Cree 2525 (with Hotsink) LED upgrade for PX15D lamps with the 25.1 base. Flexible application - suitable for 12 or 24V vehicles and compatible with either negative or positive earth systems. High and low beam - 1800 Lumen high beam, 1200 Lumen low beam. One row of LEDs lights up on each side of the bulb for low beam and both rows of LEDs lights up on both sides for high beam, replicating original, unshielded, twin filament bulbs.
Very low current draw - over 75% less than incandescent and halogen bulbs so great for low powered electrical systems (800mA at 12V, 1.6A at 6V). 3000K warm, white colour temperature.
This bulb is a great LED upgrade alternative to a number of bulbs including B3603 and B3606. Made from aviation grade aluminium. These bulbs don't have an integral lens so can be used in tripod type lamps. Please see part numbers PX15D25.1-H30-6P and PX15D25.1-H30-6N for 6V positive and negative earth applications. 64mm overall bulb height with 12 x 25mm LED section. 15mm diameter cap with 25mm diameter plate with one rounded locating tab.
| Base | Volts | Watts/Amps | Element | Colour | Application |
|---|---|---|---|---|---|
| T19 PX15D 25.1 | 12, 24 | LED | Warm White | Headlamp |
